DESCRIPTION
Performance

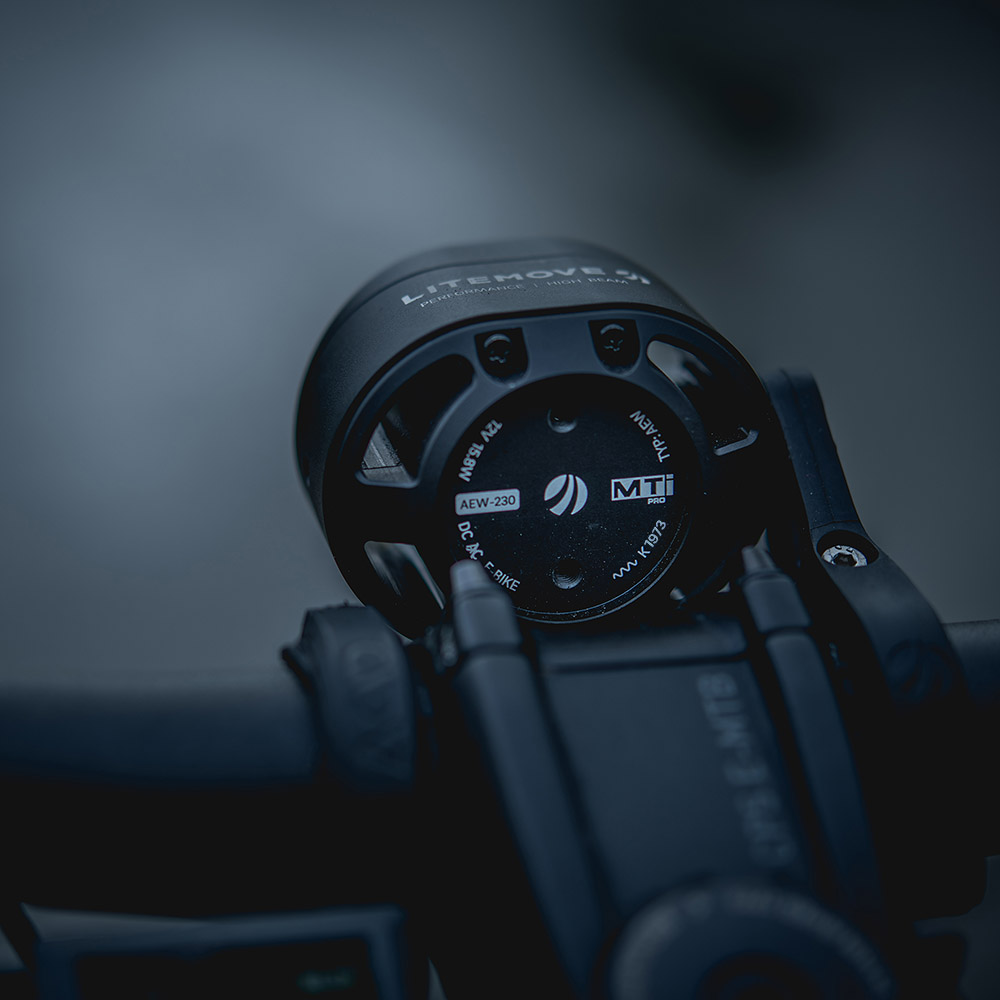

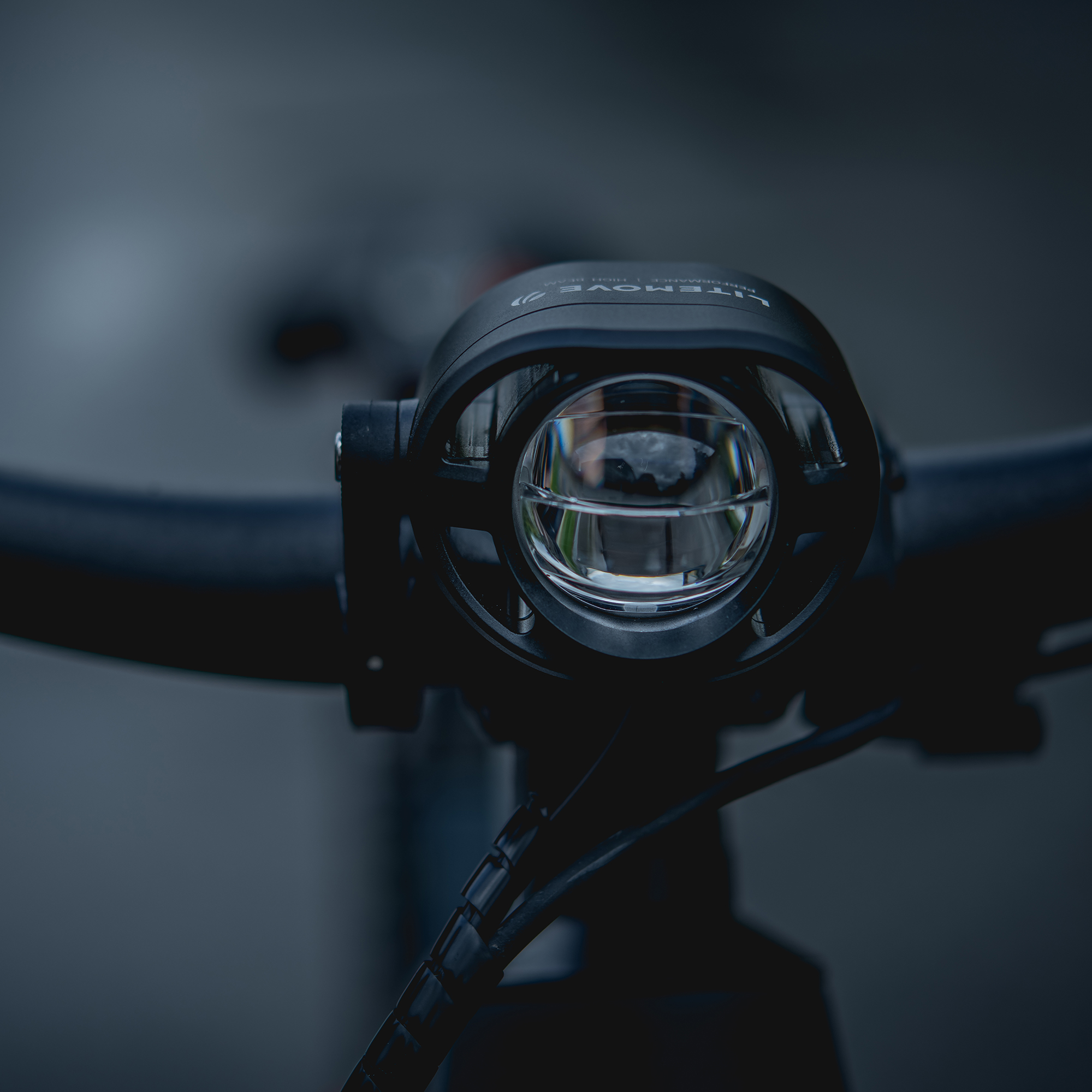

Litemove’s AEW-230 headlight provides 10m wide and up to 300m distance of beam visibility ahead. This type of headlight is best for electric mountain bike riders, providing them wider light exposure and visibility in the woods or mountains in dark areas.
Small & Compact
With a size smaller than a deck of cards, you can easily mount them on your handlebar without any interference to other components.
Mounting

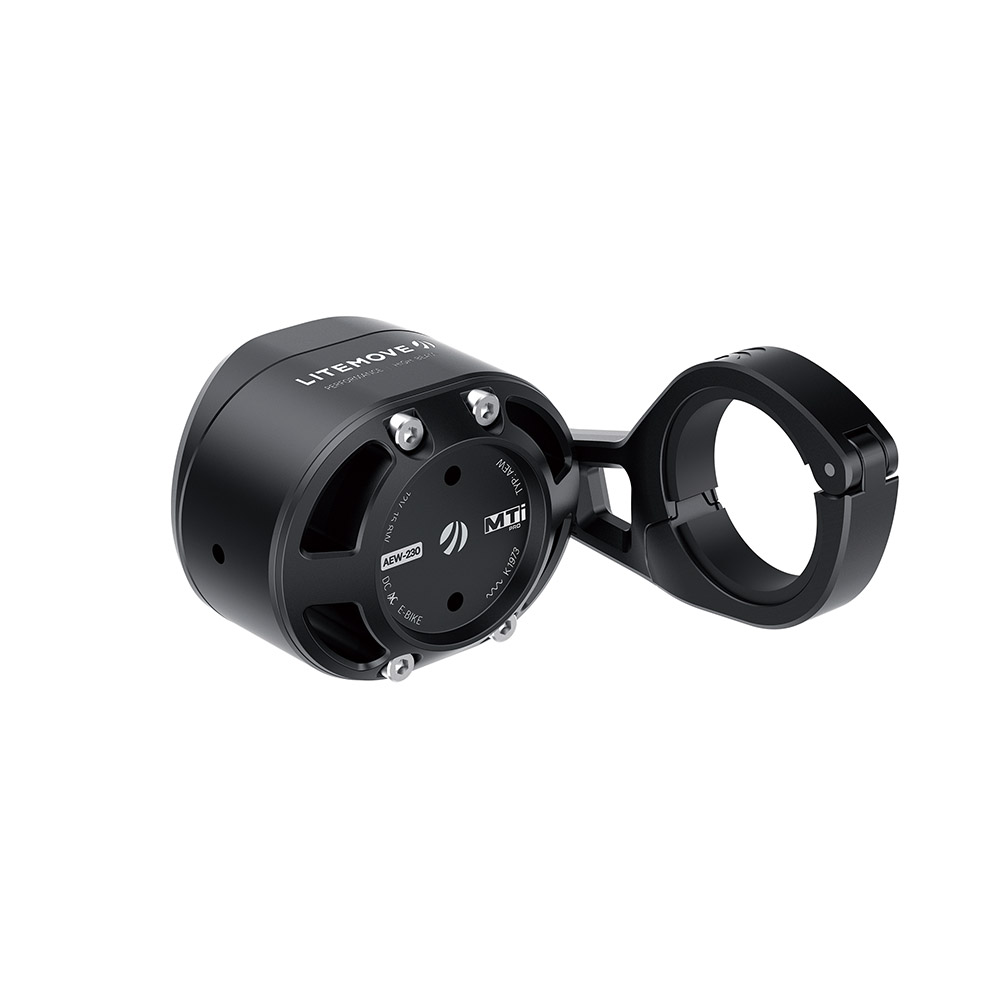

AEW-230 provides 3 different mounting options in one housing (handlebar & stem/GoPro mount).
Check for compatible bracket/mount
Note:
- This headlight can ONLY be charged through 12V(9V ~ 16V) DC power
- Do not charge via an AC power source (e.g., a dynamo)
- Connecting to power supplies above the voltage limit may cause damage to the light
- The light does not feature a switch, it is controlled via the e-bike system
For more information: click here
SPECIFICATION
| Model Name | AEW-230 |
| Model No. | HKAEW230 |
| S/N | E10 |
| Light Output | High beam: 230 lux/950 lumens Low beam: 170 lux/550 lumens |
| Optical Technology | MTi Pro |
| Light Source | LED *4 |
| Input Voltage (DC) | 12V(9V ~ 16V) |
| Power Consumption | High beam: 15W max. Low beam: 7.3W |
| Cable Diameter | Power: ø4mm Switch: ø2.55mm |
| Cable Length | Power: 1400mm Switch: 300mm |
| IP Rating | IP56 |
| Operating Temperature (°C) | -25 ~ +70 |
| Material | Aluminum |
| Weight (et. cable) | 165g |
| Dimension (WxHxL) | 63.1 x 49.9 x 52mm |
| Switch Bracket / Mount | ø22.2mm |
| Reflector (Optional) | RFD |
| Compliance | CE/ ROHS/ REACH/ Prop 65 |
| Type of Approval | StVZO-K & ISO-7642 |
| Approval Number | ~ K1973 |
