DESCRIPTION
Performance

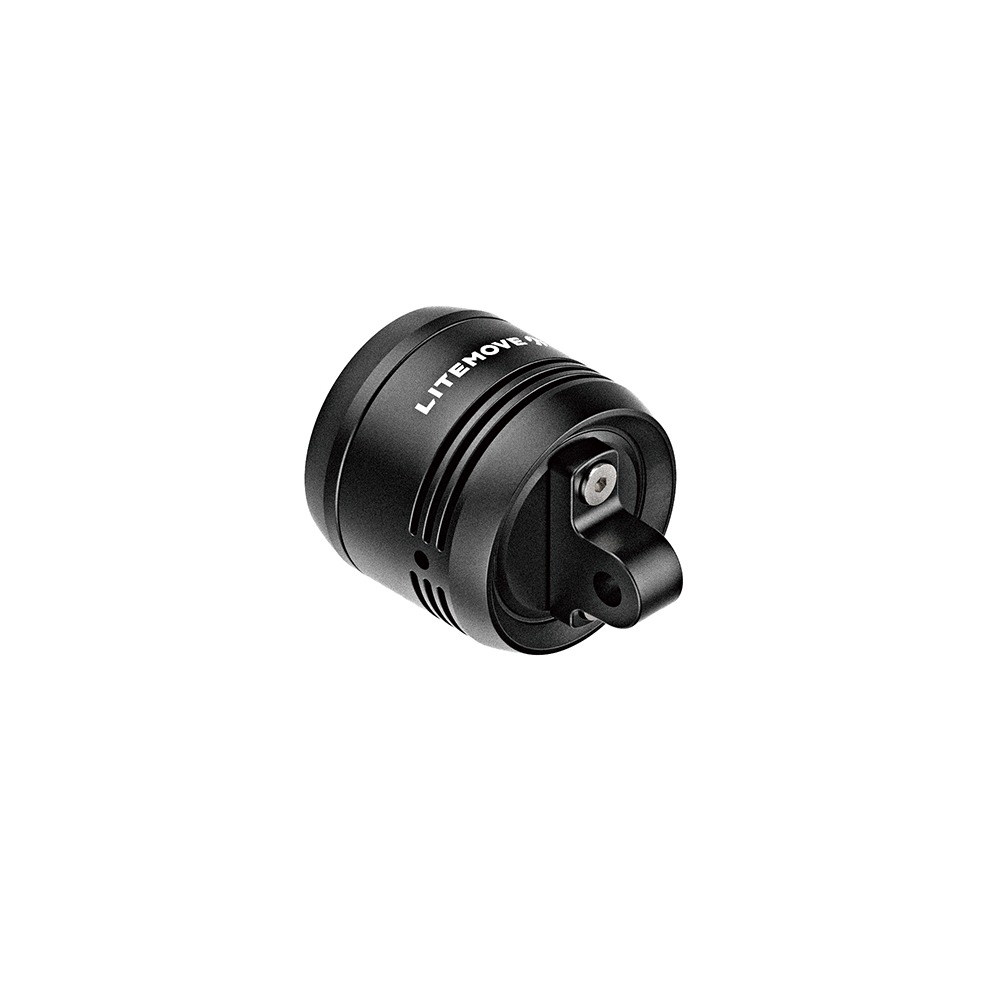

Litemove’s SCN-1700 is a powerful e-bike light delivering 1700 lumens of output
Equipped with out latest ATIR (advanced total internal reflection) lens, the SCN-1700 provides wider, more uniform beam distribution for unparalleled visibility
Built to withstand the elements with superior weather-resistant capabilities
Small & Compact
Lightweight, compact aluminum construction integrated with engineered cooling system, ensures consistent, high-performance output no matter how demanding the ride.

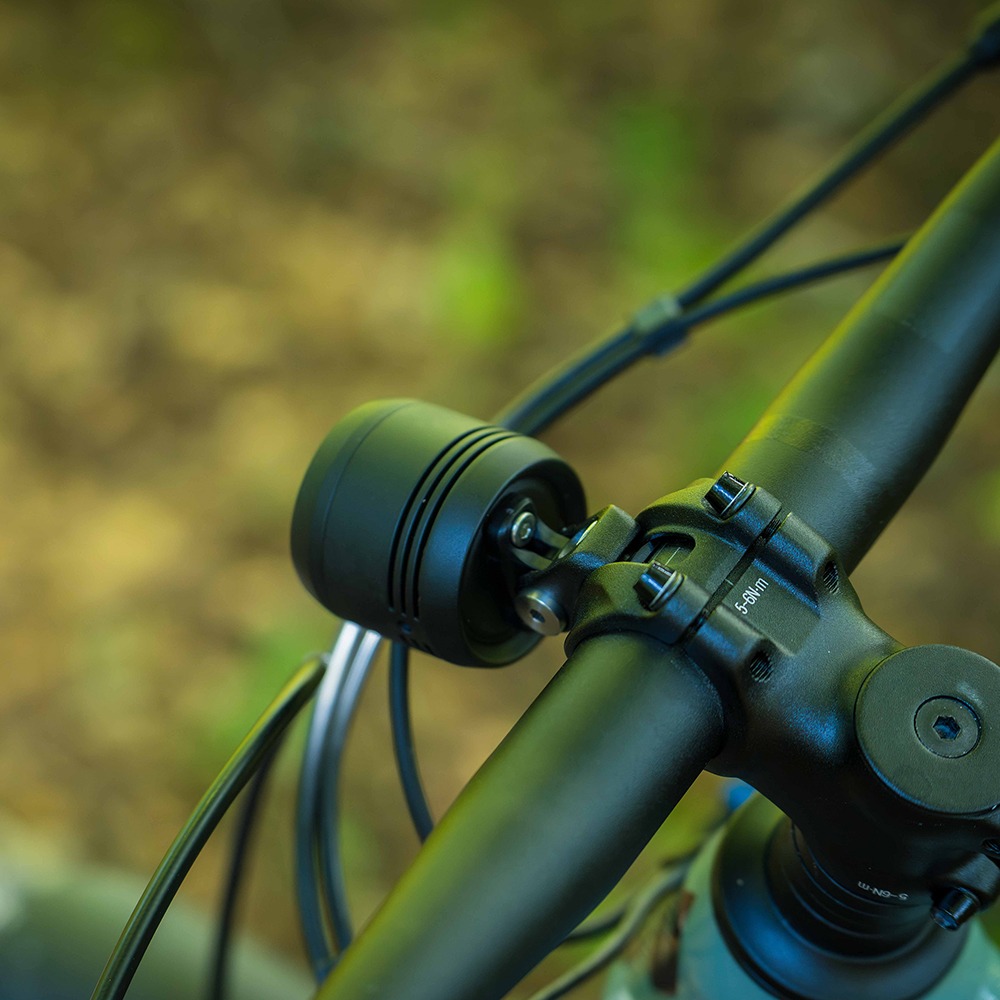

Mounting
SCN-1700 provides 3 different mounting positions.
Check for compatible bracket/mount
Note:
- This headlight can ONLY be charged through 12V(11V ~ 16V) DC power
- Do not charge via an AC power source (e.g., a dynamo)
- Connecting to power supplies above the voltage limit may cause damage to the light
- The light does not feature a switch, it is controlled via the e-bike system
SPECIFICATION
| Model Name | SCN-1700 |
| Model No. | SCN1700D/SCN1700S/SCN1700U |
| S/N | 0033 |
| Light Output | 130 Lux / 1700 Lumens |
| Optical Technology | ATIR |
| Light Source | LED *1 |
| Input Voltage (DC) | 12V(11V ~ 16V) |
| Power Consumption | 14W |
| Cable Diameter | ø4mm |
| Cable Length | 1400mm |
| IP Rating | IP56 |
| Operating Temperature (°C) | -25 ~ +50 |
| Material | Aluminum |
| Weight (et. cable) | 115g |
| Dimension (WxHxL) | ø46 x 40.8mm |
| Reflector (Optional) | RF1 / RFD |
| Compliance | CE/RoHS/REACH |
| Type of Approval | |
| Approval Number |
SYSTEM COMPATIBILITY
System Compatibility- Download.
