DESCRIPTION
Performance

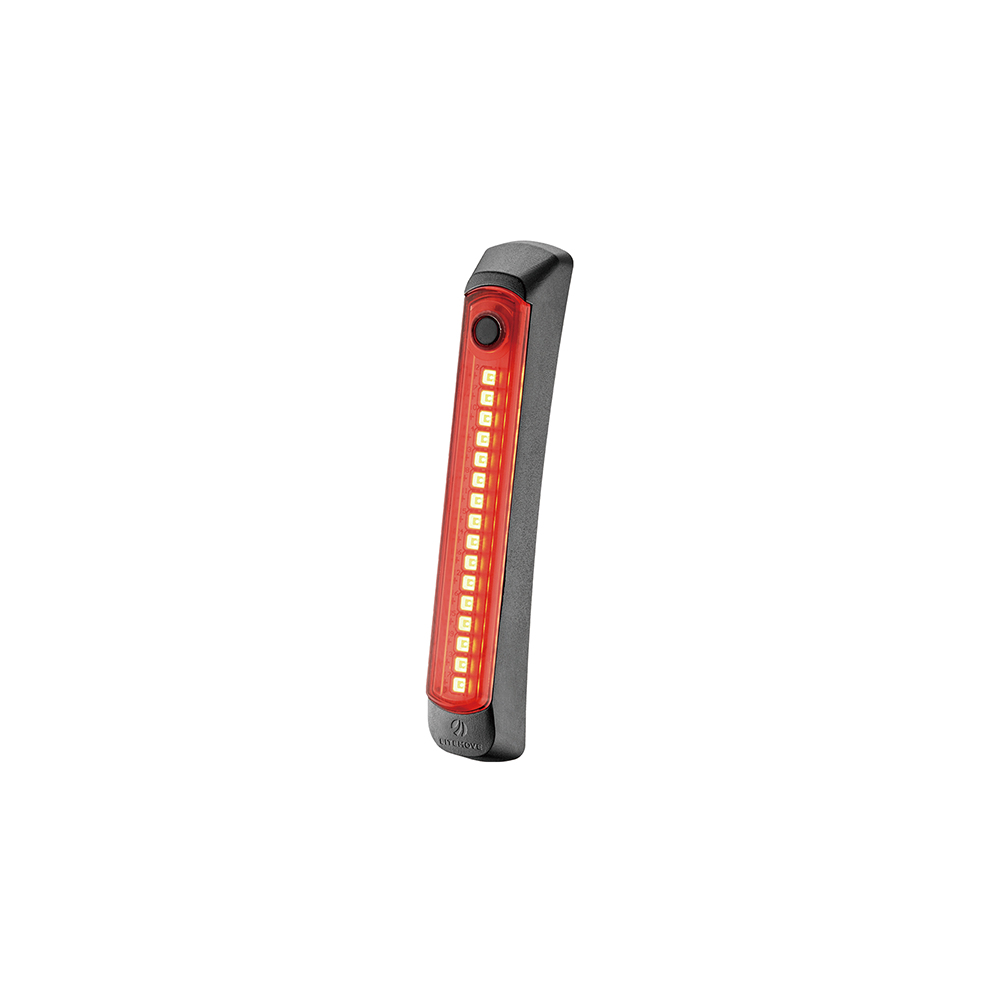

Litemove’s TS-FD bike light offers 240 degrees of light visibility, providing bikers an all-around light sphere that’s visible even from the side.
Fit with most type of bicycle fenders
Small & Compact
Dimensions & Weight:
TL-FD: 16.3(W) x 89.6(H) x 12.9(L) mm; 11g

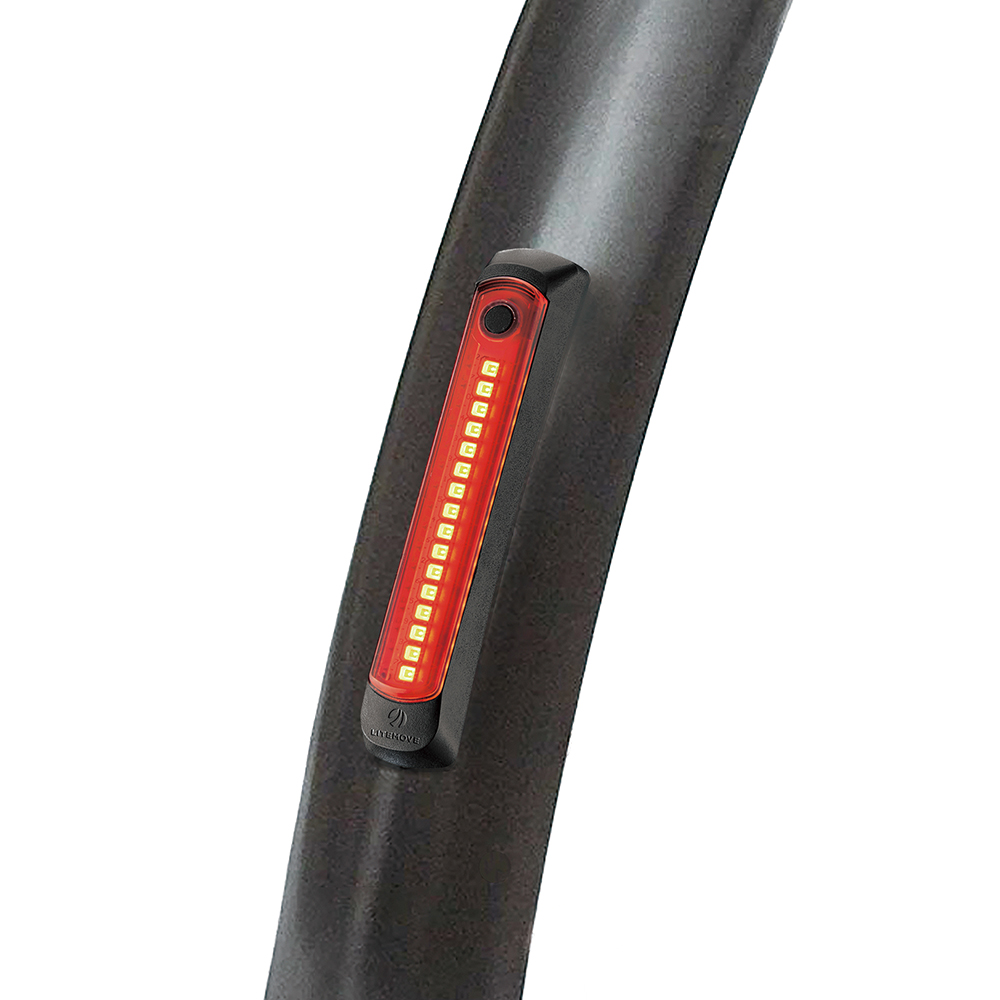

Mounting
Easily mount on the back of any e-bike fender.
Note:
- This tail light can ONLY be charged through 6V(5V ~ 16V) DC power
- Do not charge via an AC power source (e.g. a dynamo)
- Connecting to power supplies above the voltage limit may cause damage to the light
- The light does not feature a switch, It is controlled via the e-bike system
SPECIFICATION
| Model Name | TL-FD |
| Model No. | TLFD |
| S/N | 0005 |
| Light Output | 20 lumens |
| Optical Technology | TL-K |
| Light Source | LED *16 |
| Input Voltage (DC) | 6V(5V ~ 16V) |
| Power Consumption | 0.6W |
| Cable Diameter | ø3mm |
| Cable Length | 1400mm |
| IP Rating | IP56 |
| Operating Temperature (°C) | -20 ~ +50 |
| Material | Plastic |
| Weight (et. cable) | 11g |
| Dimension (WxHxL) | 16.3 x 89.6 x12.9mm |
| Mounting Option | Bicycle fender |
| Reflector (Optional) | N/A |
| Compliance | CE/ RoHS/ REACH |
| Type of Approval | StVZO-K & ISO-6742 |
SYSTEM COMPATIBILITY
System Compatibility- Download
