DESCRIPTION
Performance

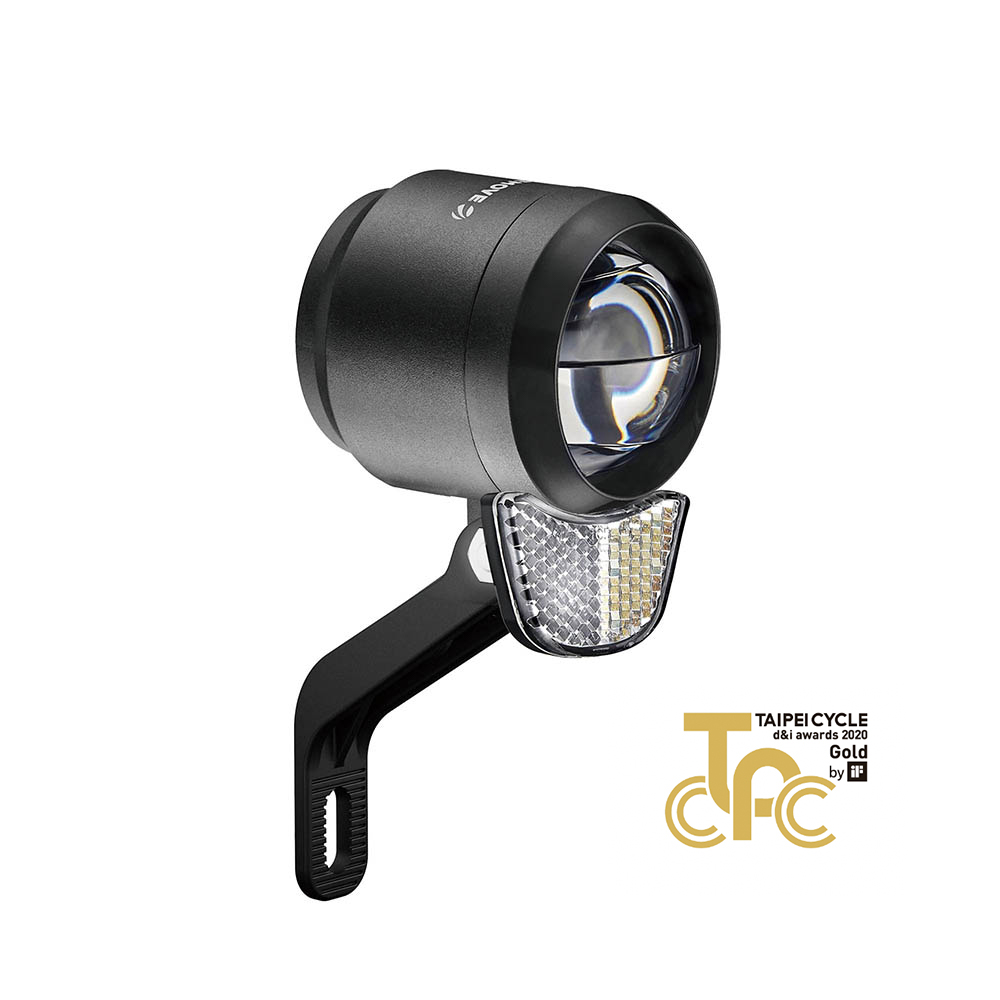

Litemove SE-70 headlight provides 6m wide and up to 150m distance of beam visibility ahead, giving electric bike riders good visibility on their trail.
Small & Compact
With a size of a match box, you can easily mount them on stem/ fork or under basket without any interference to other components.
Mounting
SE-70 provides 2 different mounting positions – Down/Up. Please select the one that meets your mounting preference before purchasing.
Mount Down- Model No. SE70D (see bracket solutions)

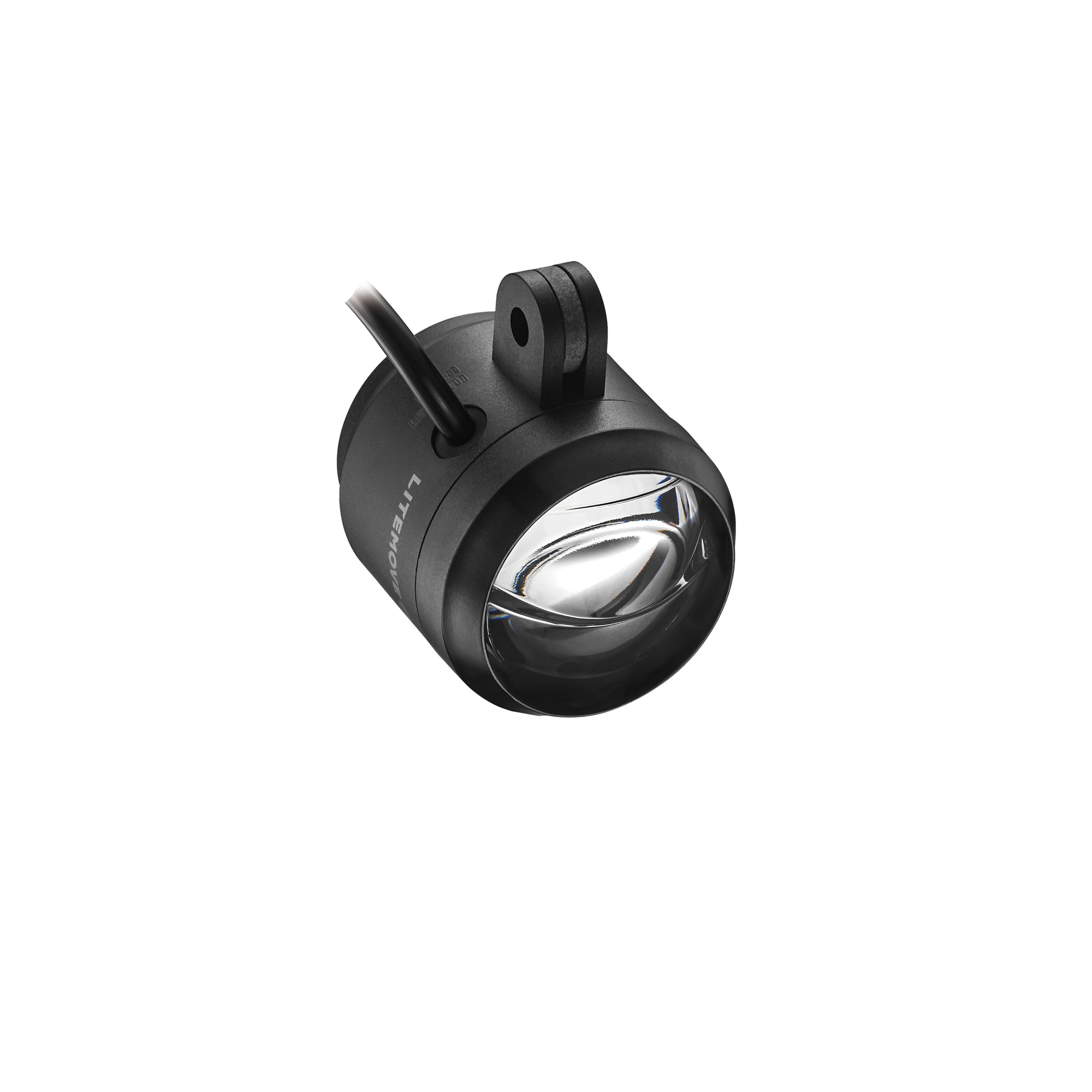

Mount Up- Model No. SE70U
Note:
- This headlight can ONLY be charged through 6V (5V~ 16V)DC power
- Do not charge via an AC power source (e.g., a dynamo)
- Connecting to power supplies above the voltage limit may cause damage to the light
- The light does not feature a switch, it is controlled via the e-bike system
SPECIFICATION
| Model Name | SE-70 |
| Model No. | SE70D / SE70U |
| S/N | 0018 |
| Light Output | 70 lux |
| Optical Technology | MTi |
| Light Source | LED *1 |
| Input Voltage (DC) | 6V (5V~ 16V) |
| Power Consumption | 4W |
| Cable Diameter | ø4mm |
| Cable Length | 1400mm |
| IP Rating | IP56 |
| Operating Temperature (°C) | -25 ~ +50 |
| Material | Plastic |
| Weight (et. cable) | 66g |
| Dimension (WxHxL) | ø43.5 x 49mm |
| Reflector (Optional) | RF1 |
| Compliance | RoHS/CE/Prop 65 |
| Type of Approval | StVZO-K |
| Approval Number | ~ K2379 |
SYSTEM COMPATIBILITY
System Compatibility- Download.
