DESCRIPTION

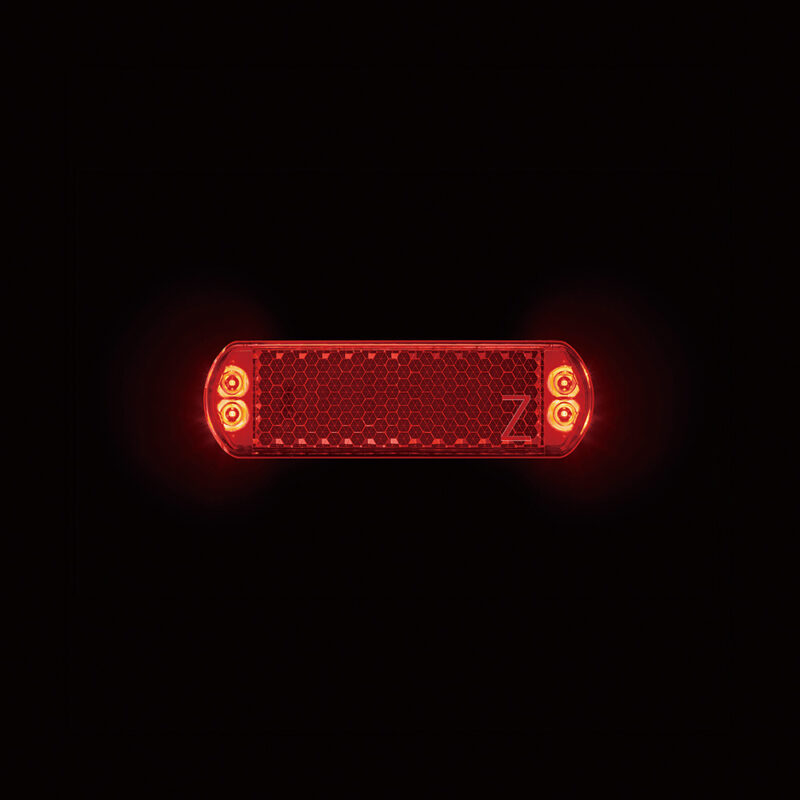

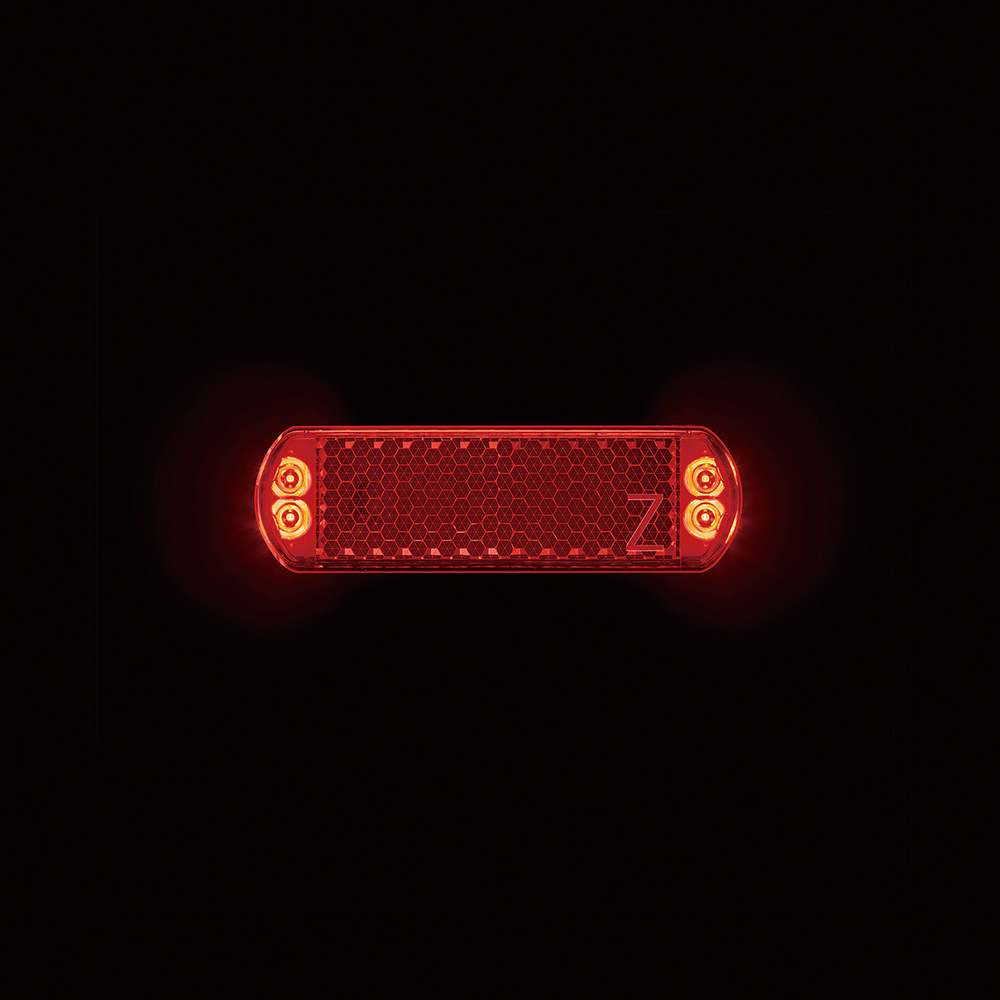

The TZHB tail light combines sleek design with smart safety features. Its carrier-mounted form integrates a Z-mark retroreflector, meeting German StVZO standards.
With a 50mm mounting option, it installs easily across a wide range of bicycles.
K-Mark certified and equipped with a brake warning function, the TZHB enhances visibility—ideal for urban riders and e-bike users who prioritize safety and style.
SPECIFICATION
| Model Name | TZHB |
| Model No. | TZHB |
| S/N | 0042 |
| Light Output | 5500mcd/16 lumens
10000mcd/ 33 lumens (brake light) |
| Optical Technology | TZH |
| Light Source | LED *3 |
| Input Voltage (DC) | 12V(5V ~ 16V) |
| Power Consumption | 0.6W/ 1.5W |
| Cable Diameter | ø3mm |
| Cable Length | 1400mm |
| IP Rating | IP56 |
| Operating Temperature (°C) | -20 ~ +50 |
| Material | Plastic |
| Weight (et. cable) | |
| Dimension (WxHxL) | 70 x 21 x 14.7 mm |
| Mounting Option | Bicycle carrier 50mm mount |
| Reflector | Integrated Z-Reflector |
| Compliance | CE/ RoHS/ REACH |
| Type of Approval | StVZO-K & ISO-6742 |
SYSTEM COMPATIBILITY
System Compatibility- Download
