DESCRIPTION
Performance

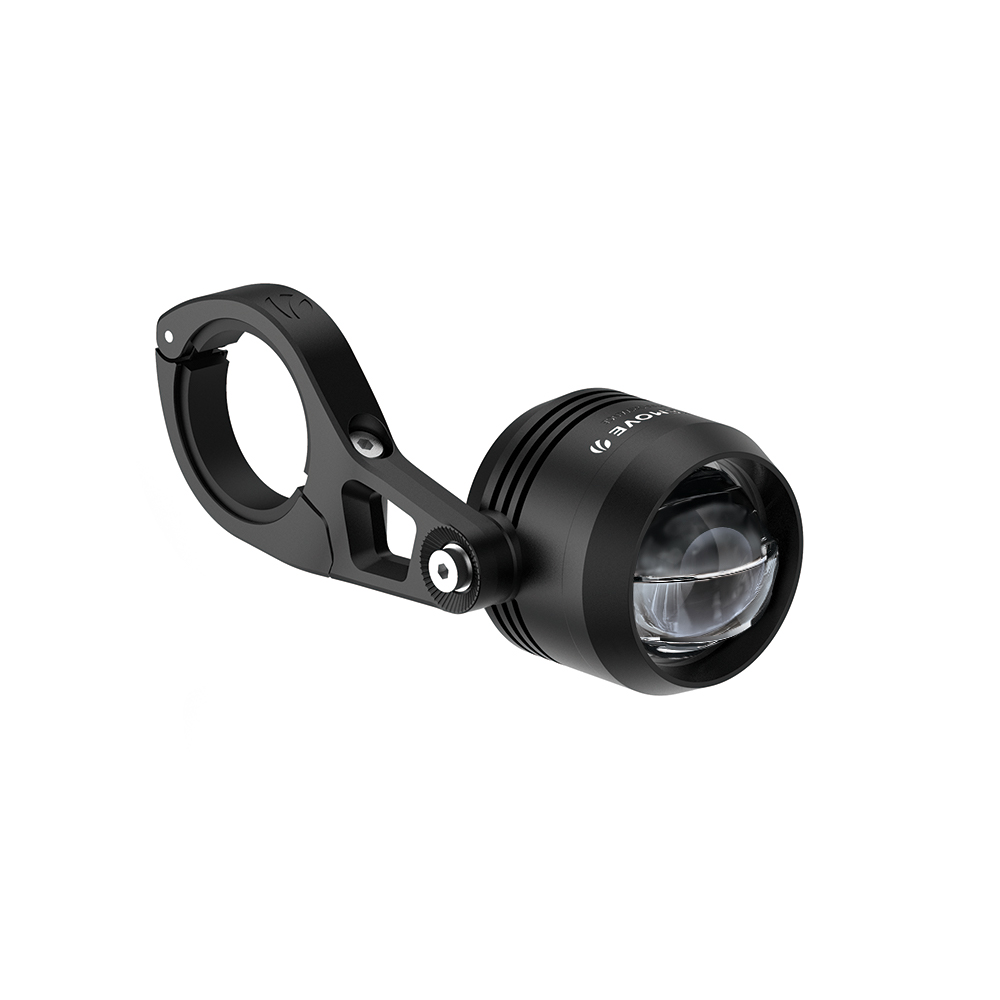

Litemove’s SEW-170 headlight provides 10m wide and up to 250m distance of beam visibility ahead. This type of headlight is best for mountain bike riders, providing them wider light exposure and visibility in the woods or mountains in dark areas.
Small & Compact
With a size smaller than a deck of cards, you can easily mount them on your handlebar without any interference to other components.
Mounting

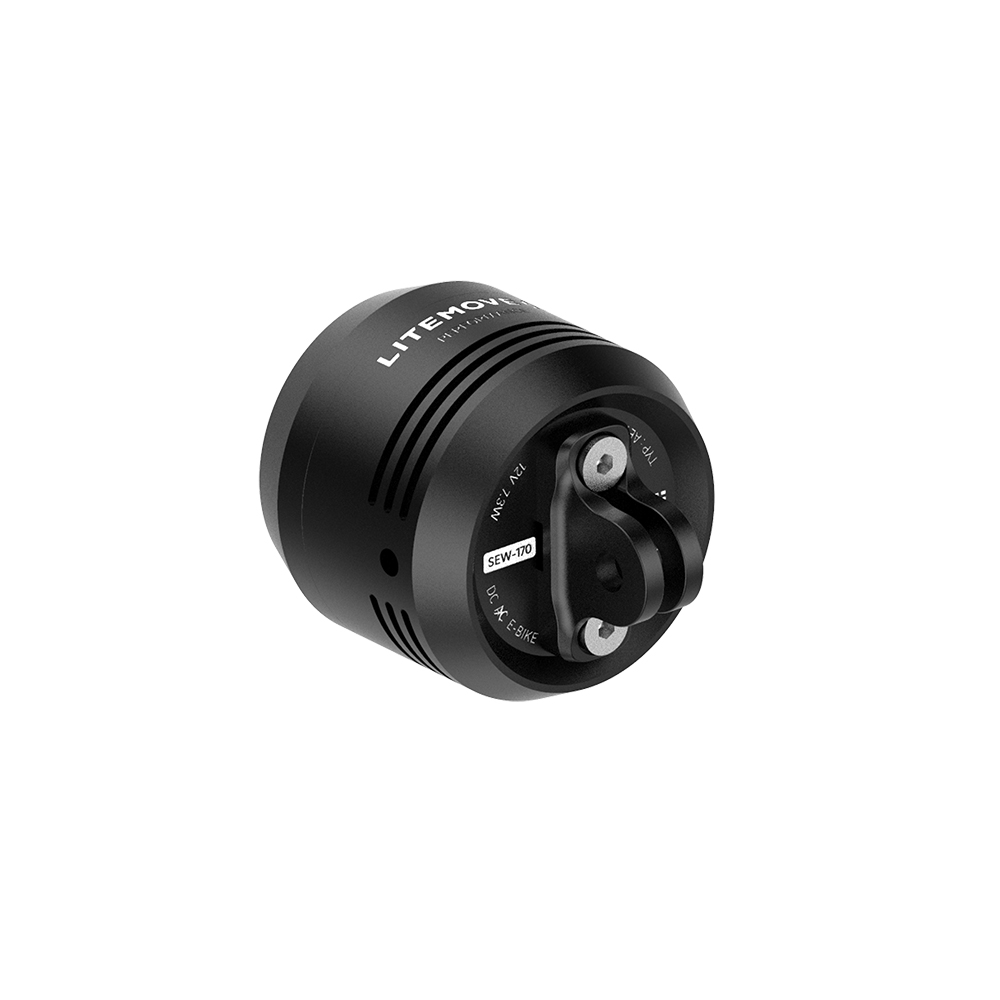

SEW-170 provides 3 different mounting positions – stem front (up holder)/ handlebar (side holder).
GoPro compatible mounting system as well
Note:
- This headlight can ONLY be charged through 12V(9V ~ 16V) DC power
- Do not charge via an AC power source (e.g., a dynamo)
- Connecting to power supplies above the voltage limit may cause damage to the light
- The light does not feature a switch, it is controlled via the e-bike system
SPECIFICATION
| Model Name | SEW-170 |
| Model No. | HKSEW170 |
| S/N | E10 |
| Light Output | 170 lux/550 lumens |
| Optical Technology | MTi Pro |
| Light Source | LED *2 |
| Input Voltage (DC) | 12V(9V ~ 16V) |
| Power Consumption | 7.3W |
| Cable Diameter | ø4mm |
| Cable Length | 1400mm |
| IP Rating | IP56 |
| Operating Temperature (°C) | -25 ~ +70 |
| Material | Aluminum |
| Weight (et. cable) | 120g |
| Dimension (WxHxL) | ø46 x 45.8mm |
| Switch Bracket / Mount | N/A |

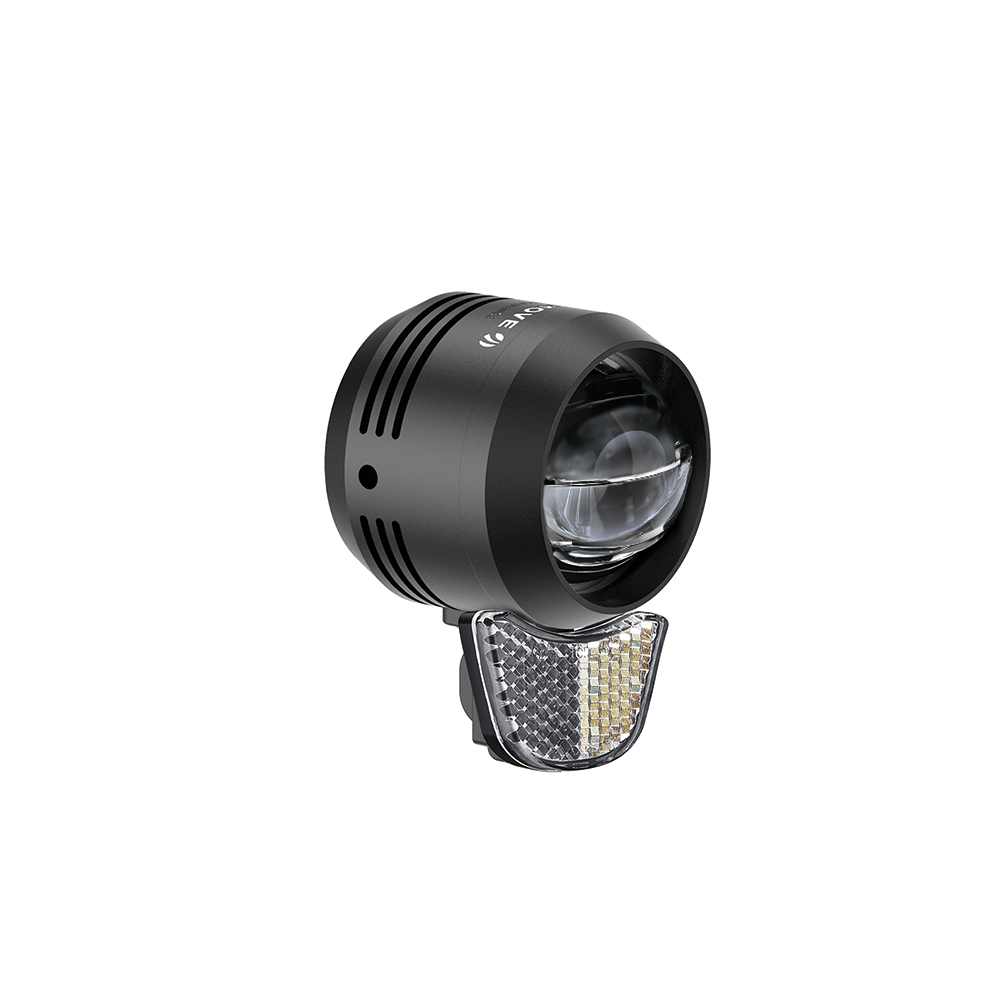

| Reflector (Optional) | RFD |
| Compliance | CE/ RoHS/ REACH/ Prop 65 |
| Type of Approval | StVZO-K/ ISO-6742 |
| Approval Number | ~ K1973 |
SYSTEM COMPATIBILITY
System Compatibility- Download
