TZVB

Engineered for safety and style, the TZVB is a K-Mark certified taillight featuring an integrated brake warning function for enhanced visibility in all conditions.

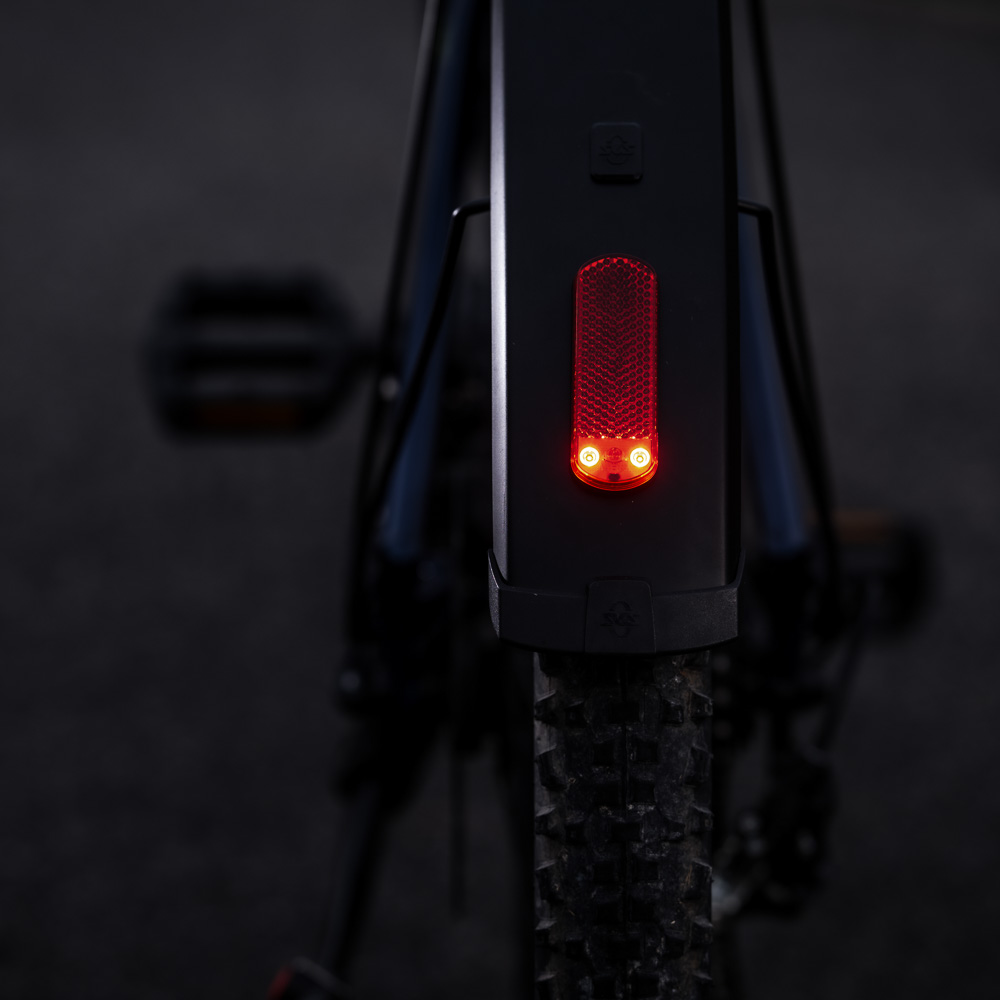

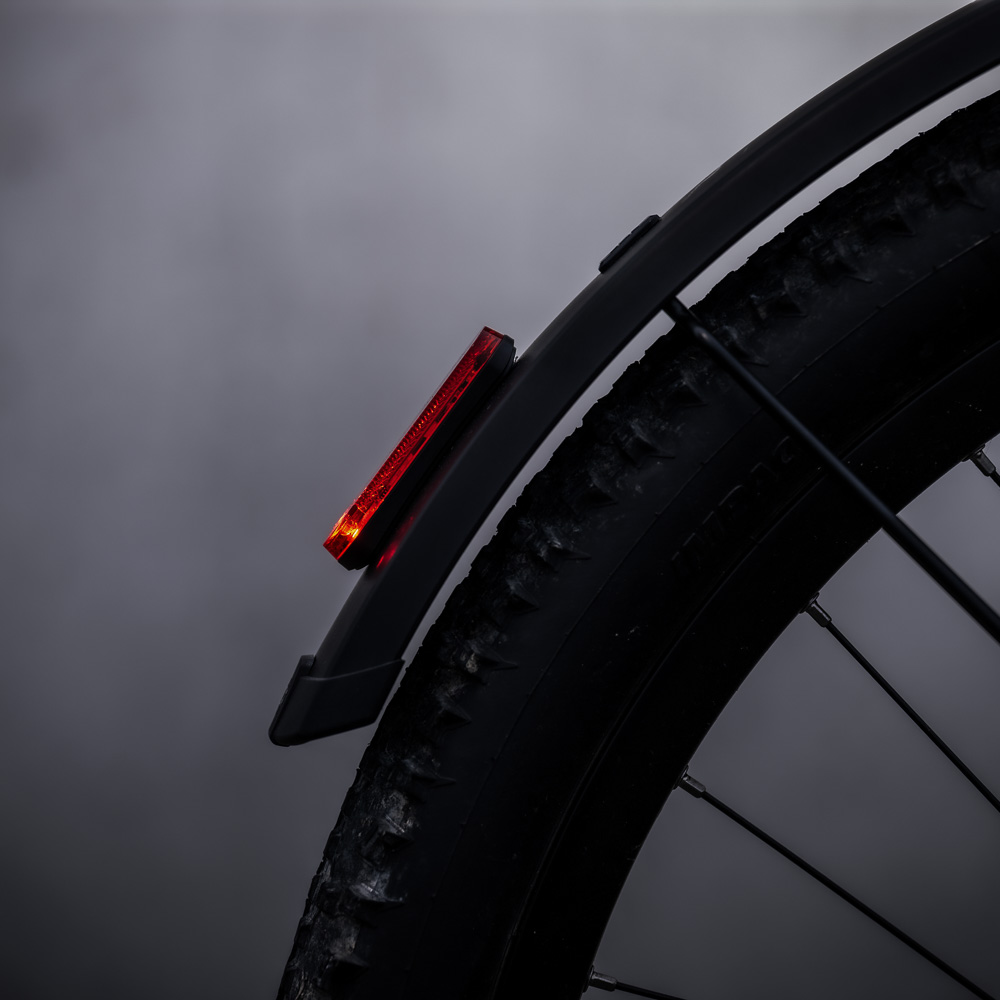

Its sleek, fender-mounted design ensures seamless integration with your bike’s frame, while the built-in Z-reflector and 30° mounting angle deliver optimal rear illumination.
Rated IP56 for protection against high-pressure water and dust, it’s built to perform in any environment.
Compatible with 25km/h e-bikes (EPAC) and fully compliant with StVZO-K and ISO-6742 standards.

Engineered for safety and style, the TZVB is a K-Mark certified taillight featuring an integrated brake warning function for enhanced visibility in all conditions.
Its sleek, fender-mounted design ensures seamless integration with your bike’s frame, while the built-in Z-reflector and 30° mounting angle deliver optimal rear illumination.
Rated IP56 for protection against high-pressure water and dust, it’s built to perform in any environment.
Compatible with 25km/h e-bikes (EPAC) and fully compliant with StVZO-K and ISO-6742 standards.

Model Name	TZVB
Model No.	TZVB
S/N	0041
Light Output	4000mcd/13 lumens 45000mcd/ 25 lumens (brake light)
Optical Technology	TZV
Light Source	LED *3
Input Voltage (DC)	12V(5V ~ 16V)
Power Consumption	0.6W/ 1.5W
Cable Diameter	ø3mm
Cable Length	1400mm
IP Rating	IP56
Operating Temperature (°C)	-20 ~ +50
Material	Plastic
Weight (et. cable)
Dimension (WxHxL)	26.7 x 75 x 13 mm
Mounting Option	Bicycle fender
Reflector	Integrated Z-Reflector
Compliance	CE/ RoHS/ REACH
Type of Approval	StVZO-K & ISO-6742

System Compatibility Download

Engineered for safety and style, the TZVB is a K-Mark certified taillight featuring an integrated brake warning function for enhanced visibility in all conditions.
Its sleek, fender-mounted design ensures seamless integration with your bike’s frame, while the built-in Z-reflector and 30° mounting angle deliver optimal rear illumination.
Rated IP56 for protection against high-pressure water and dust, it’s built to perform in any environment.
Compatible with 25km/h e-bikes (EPAC) and fully compliant with StVZO-K and ISO-6742 standards.

Model Name	TZVB
Model No.	TZVB
S/N	0041
Light Output	4000mcd/13 lumens 45000mcd/ 25 lumens (brake light)
Optical Technology	TZV
Light Source	LED *3
Input Voltage (DC)	12V(5V ~ 16V)
Power Consumption	0.6W/ 1.5W
Cable Diameter	ø3mm
Cable Length	1400mm
IP Rating	IP56
Operating Temperature (°C)	-20 ~ +50
Material	Plastic
Weight (et. cable)
Dimension (WxHxL)	26.7 x 75 x 13 mm
Mounting Option	Bicycle fender
Reflector	Integrated Z-Reflector
Compliance	CE/ RoHS/ REACH
Type of Approval	StVZO-K & ISO-6742

System Compatibility- Download
