DESCRIPTION
Performance
Litemove’s AC-210 headlight provides 10.5m wide and up to 300m distance of beam visibility ahead, giving electric bike riders better visibility in both day and dark areas.
Small & Compact
With a size smaller than a deck of cards, you can easily mount them on your handlebar without any interference to other components.

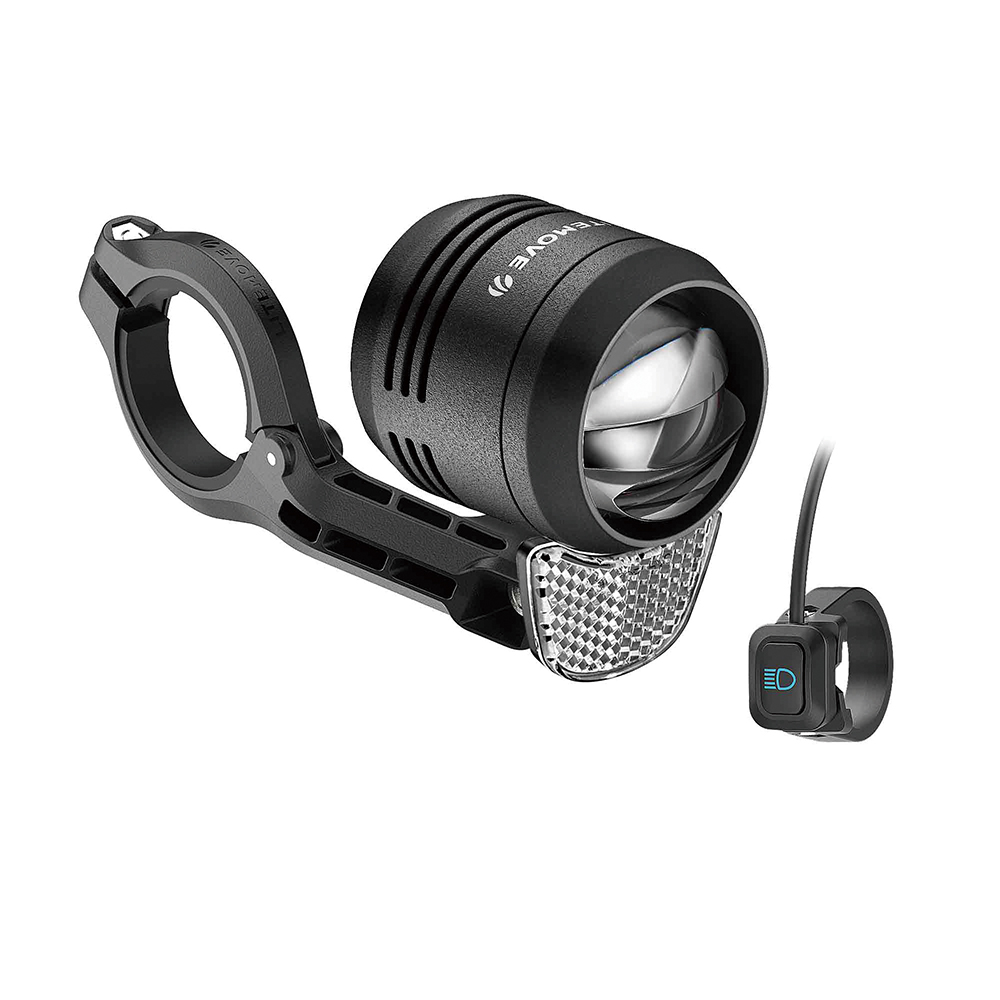

Mounting
Check for compatible bracket/mount
Note:
- This headlight can ONLY be charged through 12V(11V ~ 16V) DC power
- Do not charge via an AC power source (e.g., a dynamo)
- Connecting to power supplies above the voltage limit may cause damage to the light
- The light does not feature a switch, it is controlled via the e-bike system
SPECIFICATION
| Model Name | AC-210 |
| Model No. | AC210D/AC210S/AC210U |
| S/N | 0015 |
| Light Output | High beam: 210 Lux/ 700 lumens Low beam: 140 Lux/ 460 lumens |
| Optical Technology | MTi Plus |
| Light Source | LED *6 |
| Input Voltage (DC) | 12V(11V ~ 16V) |
| Power Consumption | High beam: 16W max. Low beam: 10W |
| Cable Diameter | Power: ø4mm Switch: ø2.55mm |
| Cable Length | Power: 1400mm Switch: 300mm/650mm |
| IP Rating | IP56 |
| Operating Temperature (°C) | -25 ~ +50 |
| Material | Aluminum |
| Weight (et. cable) | 128g |
| Dimension (WxHxL) | ø46 x 52mm |
| Switch bracket / mount | ø22.2mm |
| Reflector (Optional) | RF1/RFD |
| Compliance | CE/ ROHS/ REACH |
| Type of Approval | StVZO-K/ ISO-6742 |
| Approval Number | ~ K2510 |
SYSTEM COMPATIBILITY
System Compatibility- Download.
