DESCRIPTION
Performance

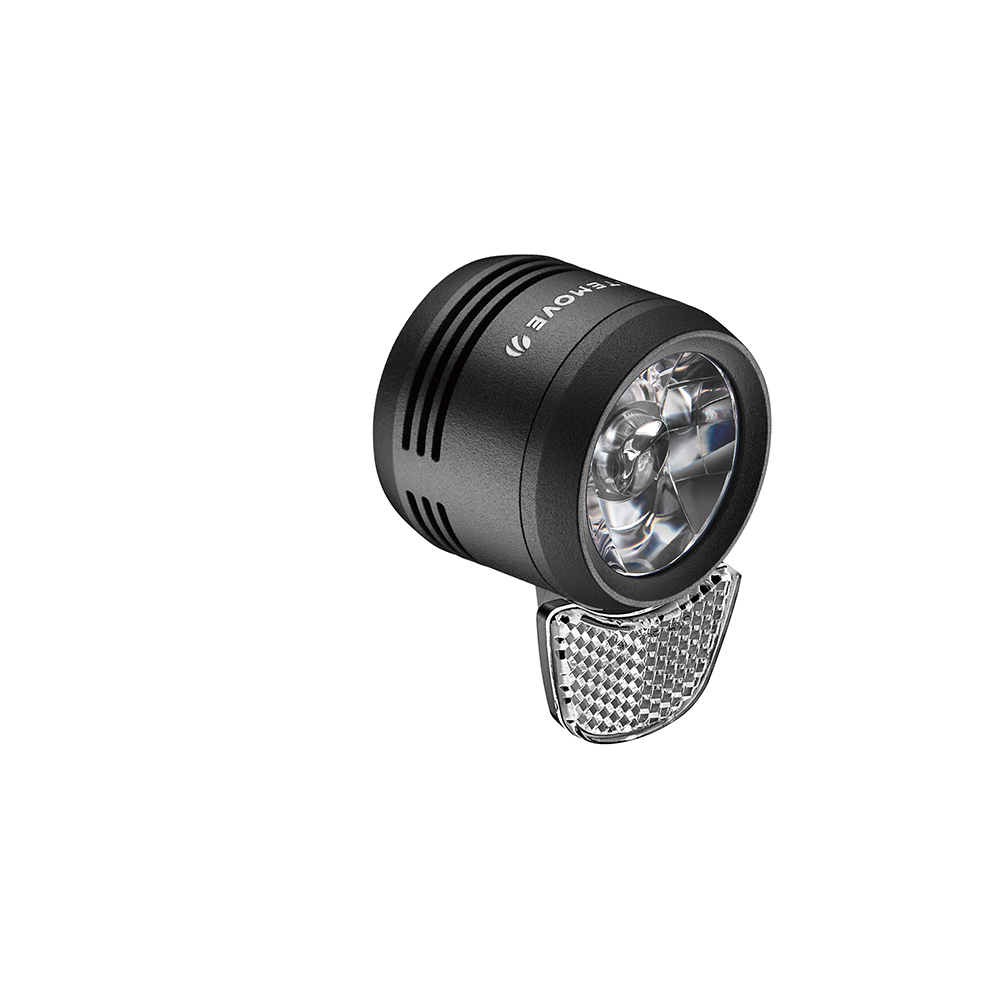

Litemove’s SC-150 headlight provides 12m wide and up to 250m distance of beam visibility ahead, giving electric bike riders better visibility in both day and dark areas.
Small & Compact
With a size smaller than a deck of cards, you can easily mount them on your handlebar without any interference to other components.

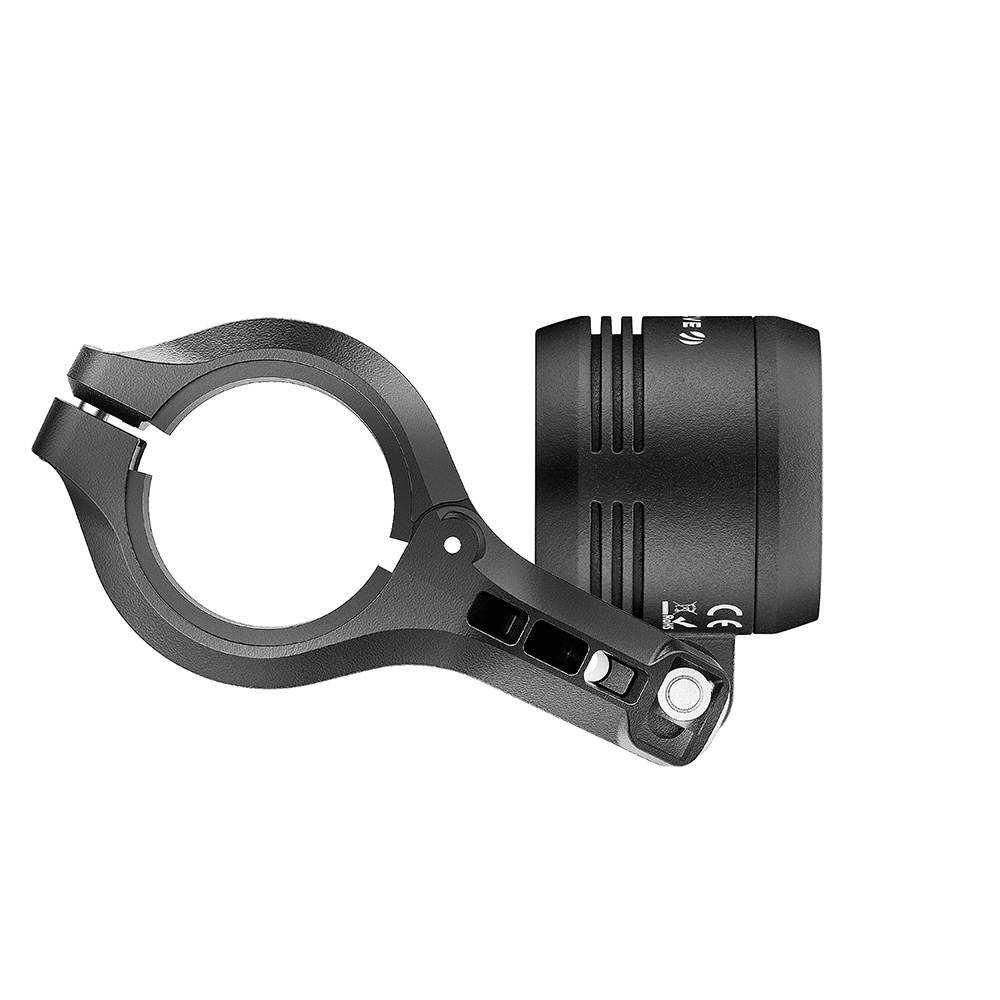

Mounting
SC-150 provides 3 different mounting positions.
Note:
- This headlight can ONLY be charged through 12V(11V ~ 16V) DC power
- Do not charge via an AC power source (e.g., a dynamo)
- Connecting to power supplies above the voltage limit may cause damage to the light
- The light does not feature a switch, it is controlled via the e-bike system
SPECIFICATION
| Model Name | SC-150 |
| Model No. | SC150D/SC150S/SC150U |
| S/N | 0020 |
| Light Output | 150 Lux / 800 Lumens |
| Optical Technology | ATIR |
| Light Source | LED *1 |
| Input Voltage (DC) | 12V(11V ~ 16V) |
| Power Consumption | 14W |
| Cable Diameter | ø4mm |
| Cable Length | 1400mm |
| IP Rating | IP56 |
| Operating Temperature (°C) | -25 ~ +50 |
| Material | Aluminium |
| Weight (et. cable) | 115g |
| Dimension (WxHxL) | ø46 x 40.8mm |
| Reflector (Optional) | RF1 / RFD |
| Compliance | RoHS/CE/Prop 66 |
| Type of Approval | StVZO-K |
| Approval Number |
SYSTEM COMPATIBILITY
System Compatibility- Download.
