DESCRIPTION
Small & Compact
Performance
Litemove TSV tail light offers 240 degrees of light visibility, providing bikers an all-around light sphere that’s visible even from the back.
Available to mount for both vertical and horizontal position
Eccentric holder allows for more flexibility in mounting
Small & Compact
Dimensions & Weight:
17.1(H) x 37(L) x 26(W) mm; 18g

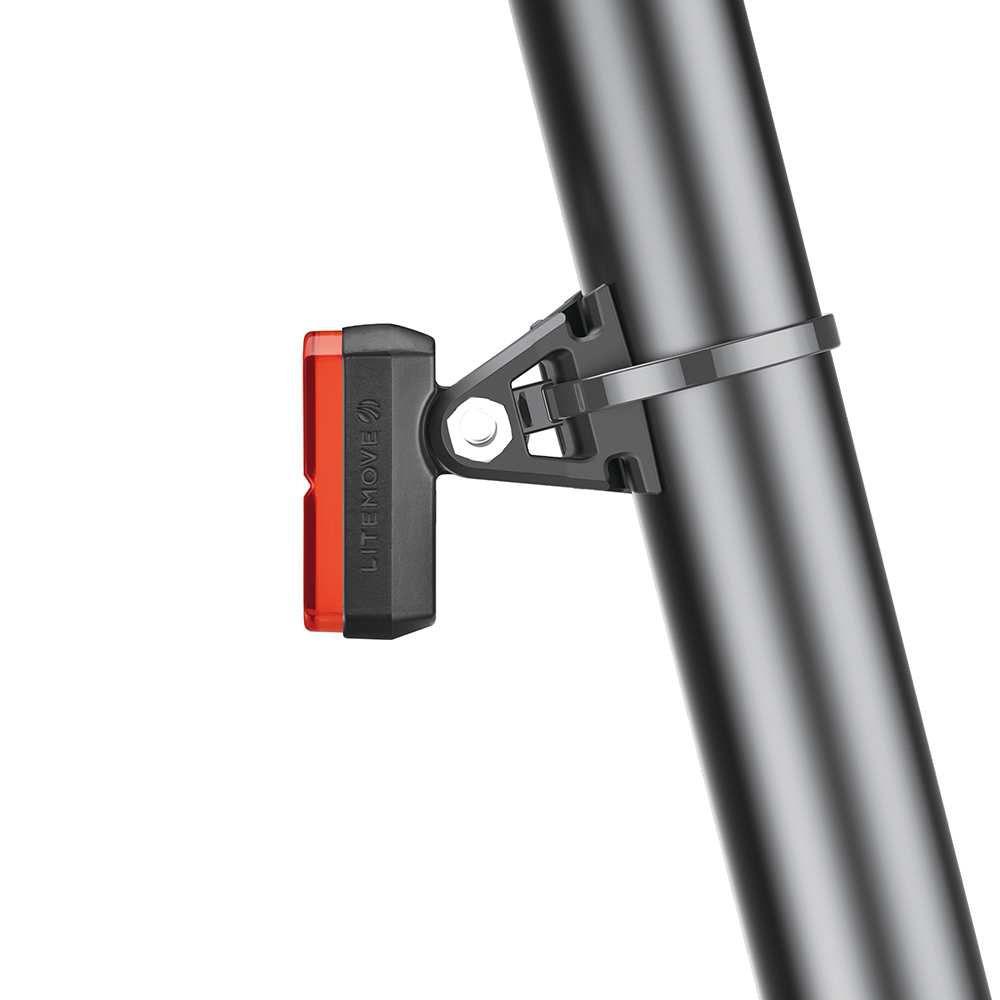

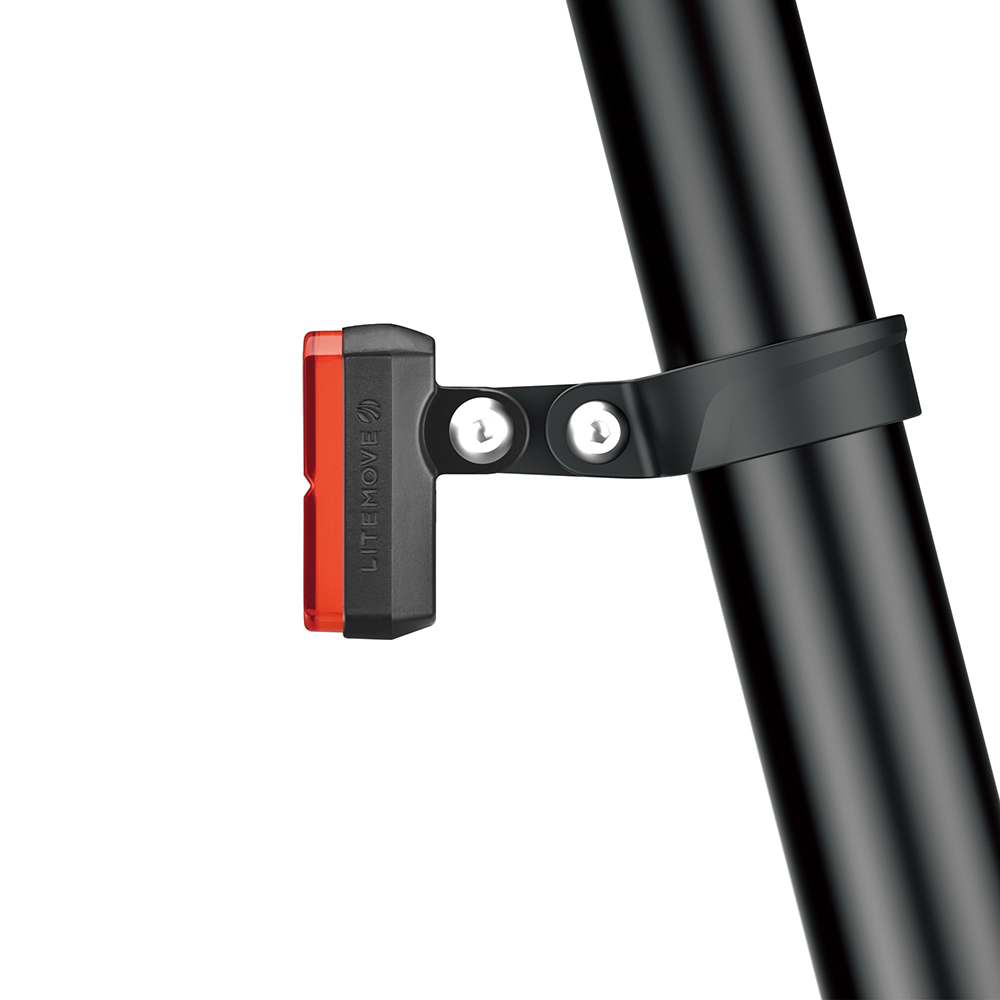

Mounting
Attach on the back of seatposts with diameters of 31.6/30.9/27.2mm.
Check for compatible bracket/mount
Please make sure your seatposts are compatible before purchasing.
Notes:
- This tail light can ONLY be charged through 6V(5V ~ 16V) DC power
- Do not charge via an AC power source (e.g. a dynamo)
- Connecting to power supplies above the voltage limit may cause damage to the light
- The light does not feature a switch, It is controlled via the e-bike system
SPECIFICATION
| Model Name | TSV |
| Model No. | TSV |
| S/N | 0031 |
| Light Output | 2500mcd |
| Light Source | LED *10 |
| Input Voltage (DC) | 6V(5V ~ 16V) |
| Power Consumption | 0.65W |
| Cable Diameter | ø3mm |
| Cable Length | 1400mm |
| IP Rating | IP56 |
| Operating Temperature (°C) | -25 ~ +50 |
| Material | Plastic |
| Weight (et. cable) | 18g |
| Dimension (WxHxL) | 17.1 x 37 x 26 mm (w/o bracket) |
| Compliance | CE/ RoHS/ ROHS |
| Type of Approval | StVZO-K/ ISO-6742 |
VIDEO
BOSCH Motor
BROSE Motor
SHIMANO Motor
SYSTEM COMPATIBILITY
System Compatibility- Download
