DESCRIPTION
Performance
Litemove RX-E50 headlight provides 8m wide and up to 120m distance of beam visibility ahead, giving electric bike riders good visibility on their trail.
Small & Compact
With a size of a match box, you can easily mount them on stem/ fork or under basket without any interference to other components.

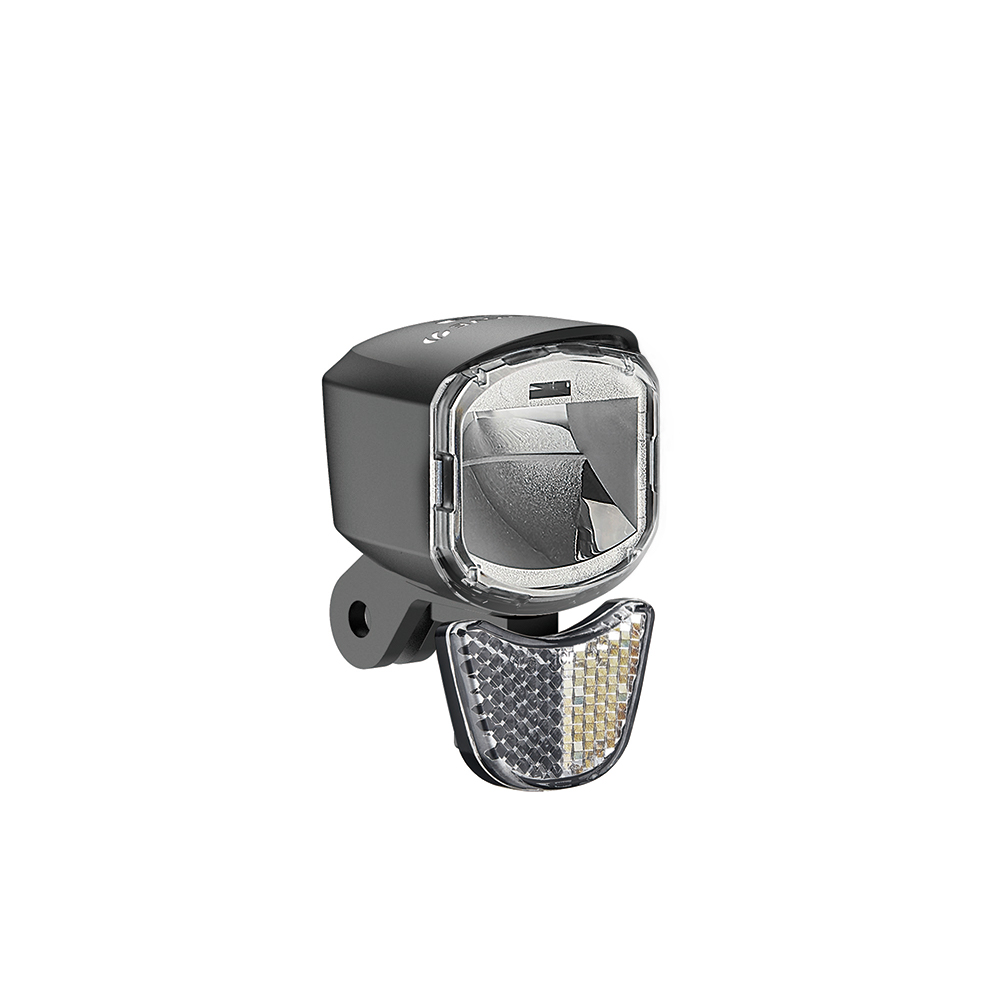

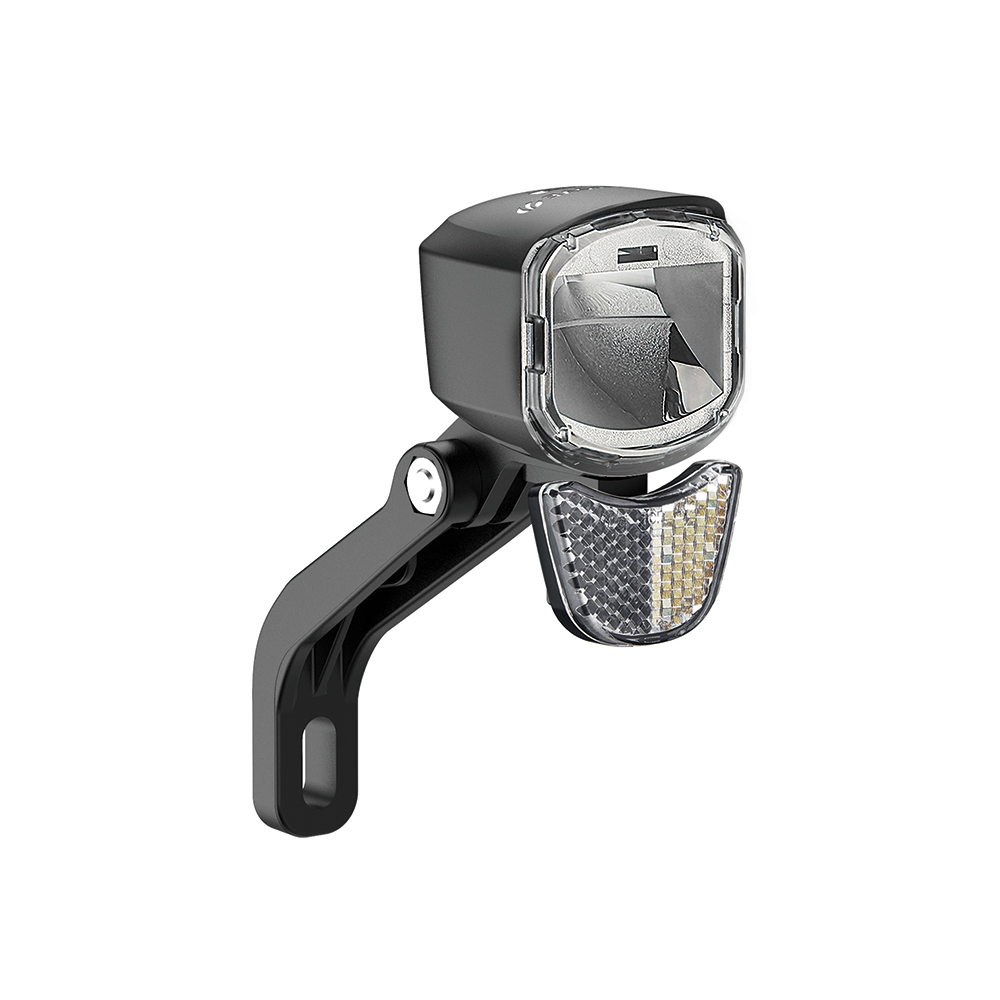

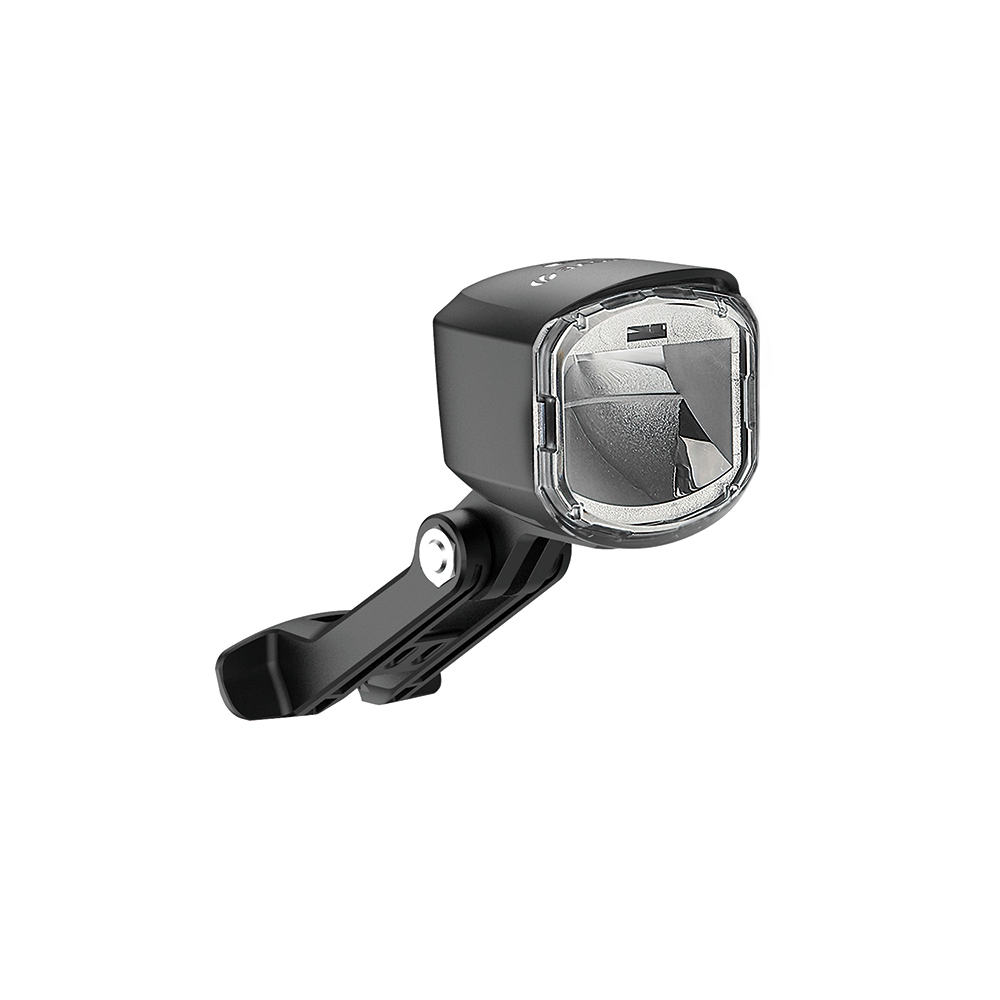

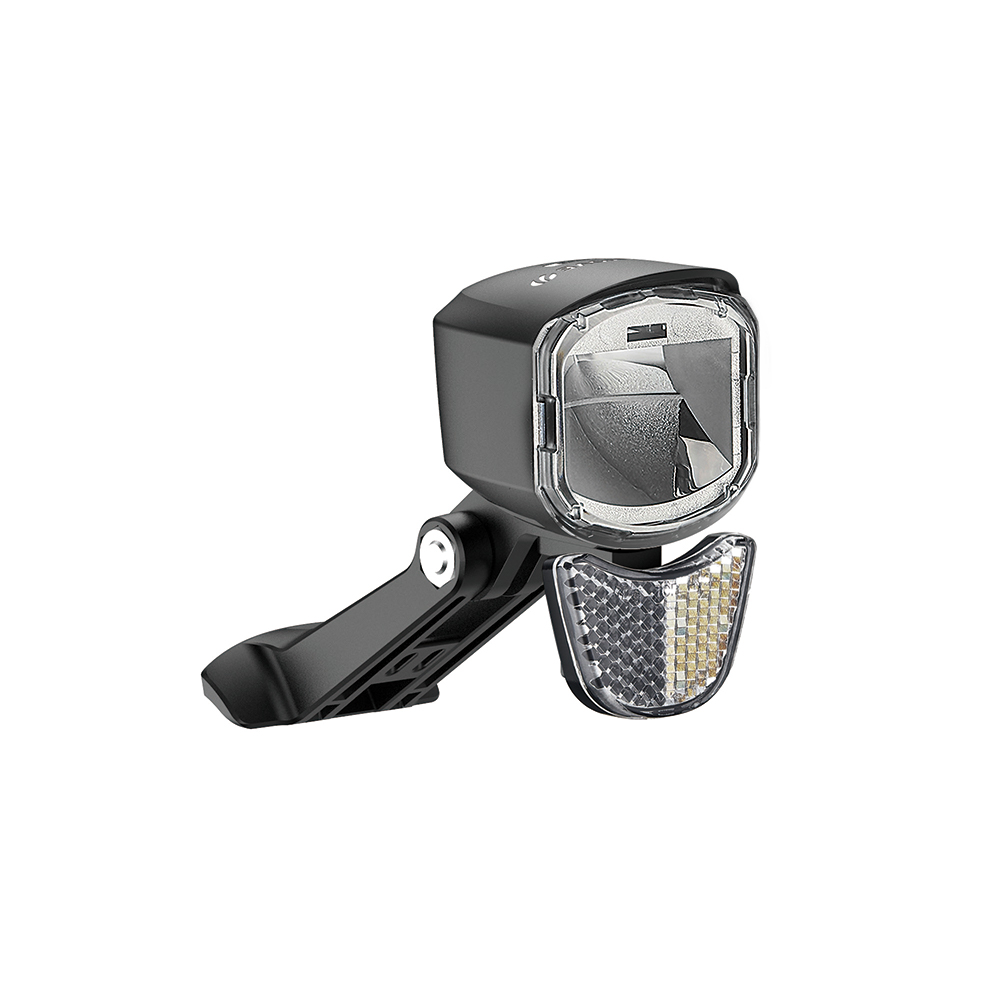

Mounting
RX-E50 provides different mounting positions. Please select the one that meets your mounting preference before purchasing.
Note:
- This headlight can ONLY be charged through 6V(5V ~ 16V) DC power
- Do not charge via an AC power source (e.g., a dynamo)
- Connecting to power supplies above the voltage limit may cause damage to the light
- The light does not feature a switch, it is controlled via the e-bike system
SPECIFICATION
| Model Name | RX-E50 |
| Model No. | RXE50 |
| S/N | RX01 |
| Light Output | 50 lux |
| Optical Technology | RX |
| Light Source | LED *1 |
| Input Voltage (DC) | 6V(5V ~ 16V) |
| Power Consumption | 2.5W |
| Cable Diameter | ø4mm |
| Cable Length | 1400mm |
| IP Rating | IP56 |
| Operating Temperature (°C) | -25 ~ +50 |
| Material | Plastic |
| Weight (excl. cable) | 18.5g |
| Dimension (WxHxL) | 39.2 x 52.6 x 48.8mm |
| Switch Bracket / Mount | N/A |
| Reflector (Optional) | RFDT |
| Compliance | RoHS/CE/Prop 65 |
| Type of Approval | StVZO-K |
| Approval Number | ~ K 2047 |
SYSTEM COMPATIBILITY
System Compatibility- Download.
